We offer a range of automatic Print&Check machines with integrated vision system Tracker, for printing, checking, and verifying serialized codes on pharmaceutical cartons. With complete Track & Trace functionality, Tracker is designed to meet the requirements of serialization in all markets.

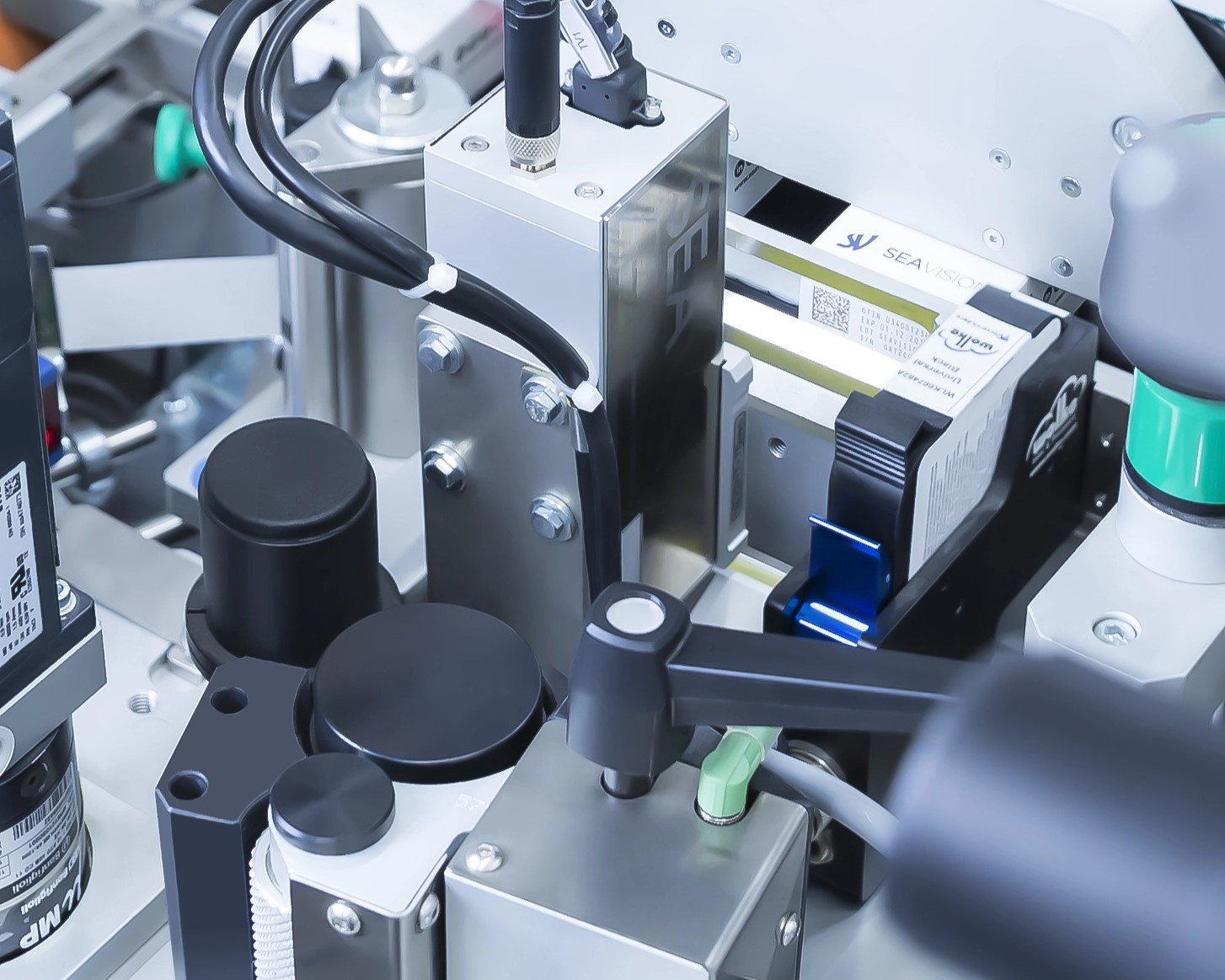

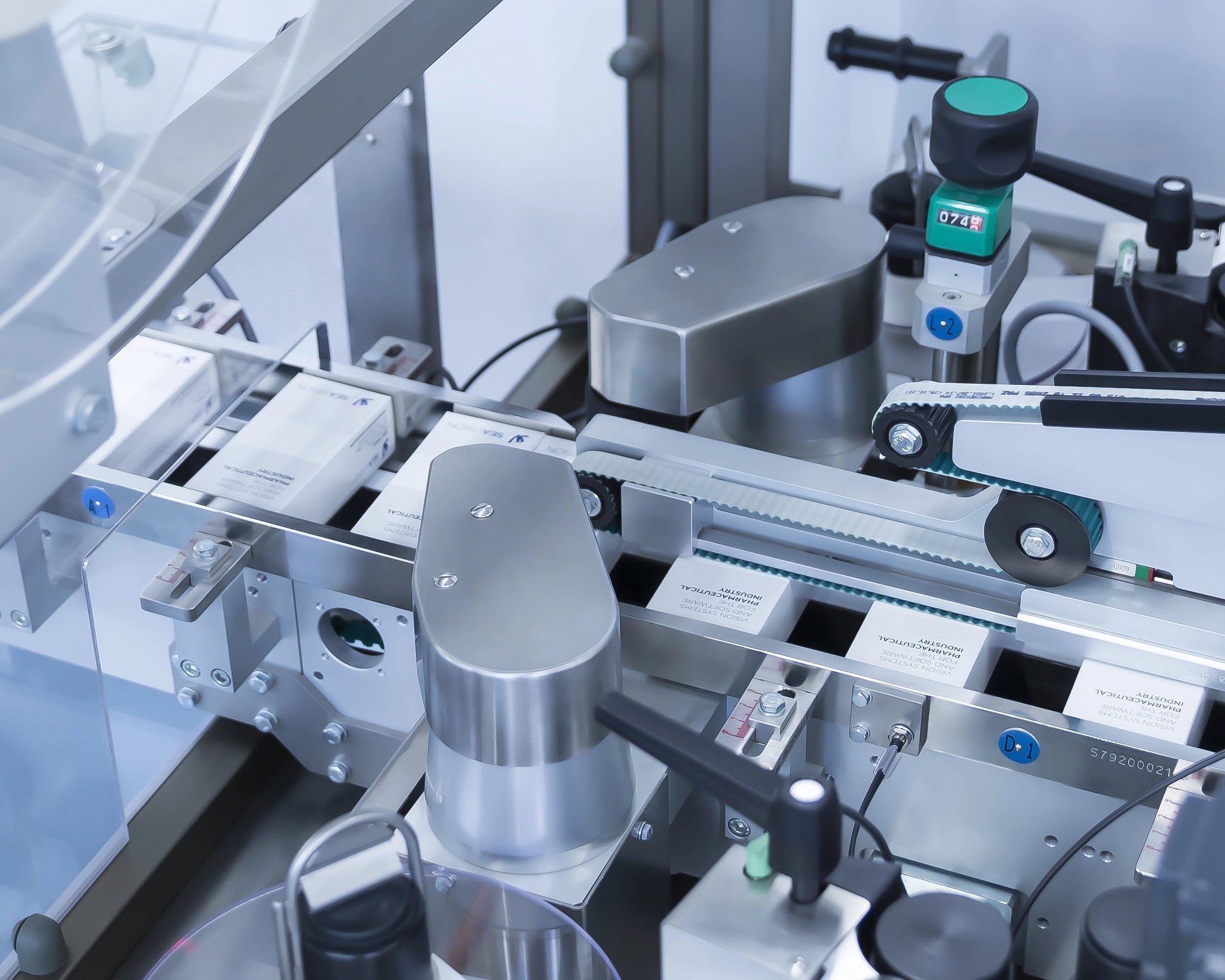

SL-A210 integrates Tracker machine serialization solution to manage the printing and check of 1D and 2D serialized codes (e.g. data matrix, cryptocode, code128) making it adapt to every pharmaceutical serialization market.
The tamper evident option makes it the perfect solution for the European market: SL-A210 (with TE option) performs the application of tamper evident seals on the lateral flips of the carton complying with EU Directive 2011/62/EU.

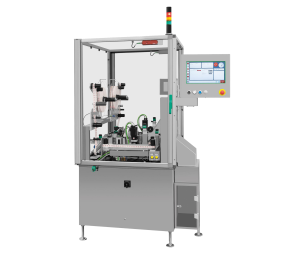

SL-A210 is a continuous motion machine suitable for 1D, 2D codes and human readable data print and check. The unit operates in line with other machines or as a free-standing machine if equipped with suitable in-feed/out-feed accessories.
- Compact and ergonomic design
- Twin conveyor belts with adjustable width for handling different carton sizes

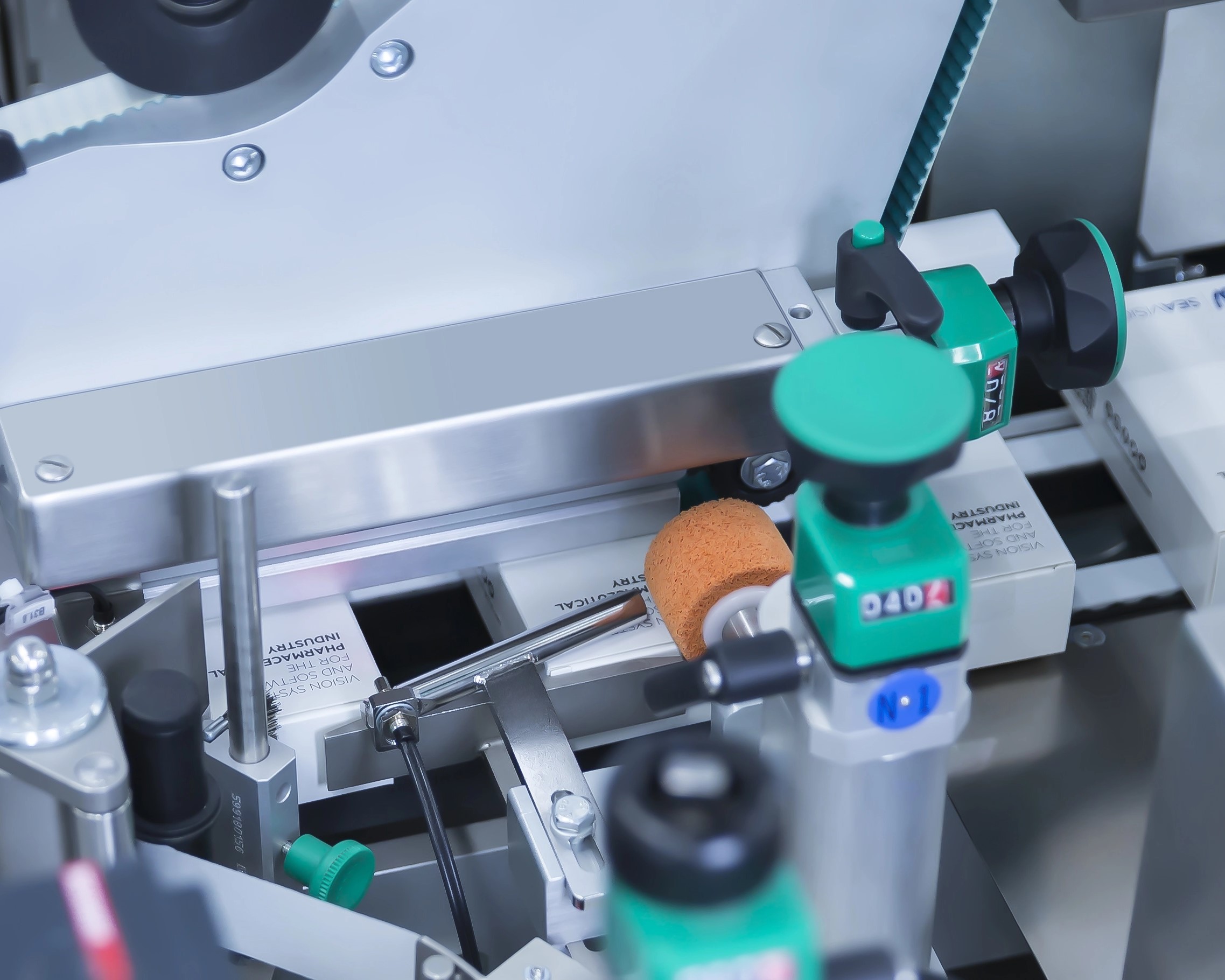

- Two rollers in infeed for carton spacing
- Quick changeover without any size parts
- 15’’ Touch screen control panel for machine and serialization system management, with user-friendly interface
- High resolution camera with LED light unit
- Multicore and multithread industrial PC with UPS

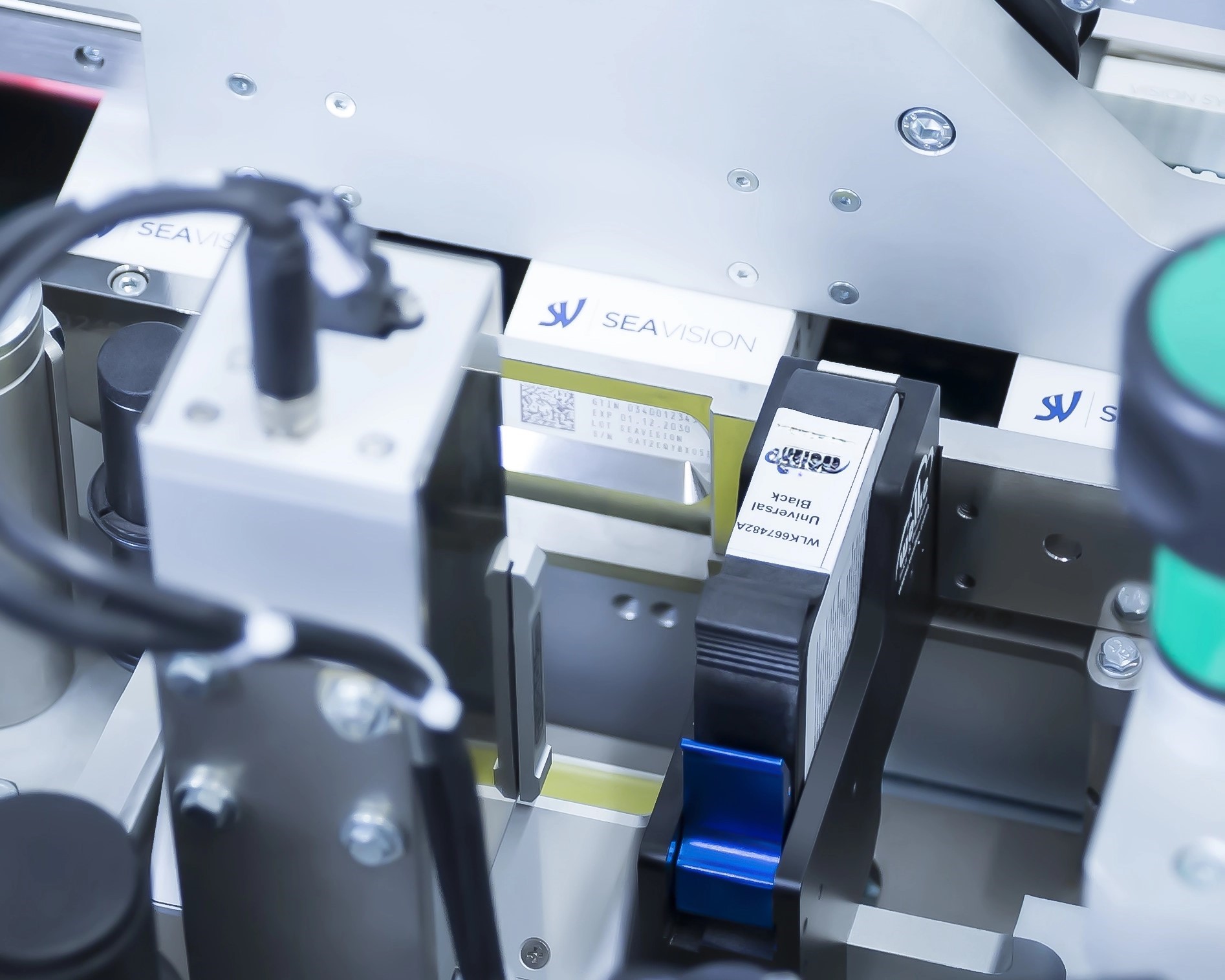

- Thermal inkjet printer with one or more printing heads
- Safety guards to protect from unauthorized intervention during serialization process
- Rejection by pneumatically-driven piston
- Carton reject inside the bin with collection on operator side
OUTPUT: Up to 150 cartons/min

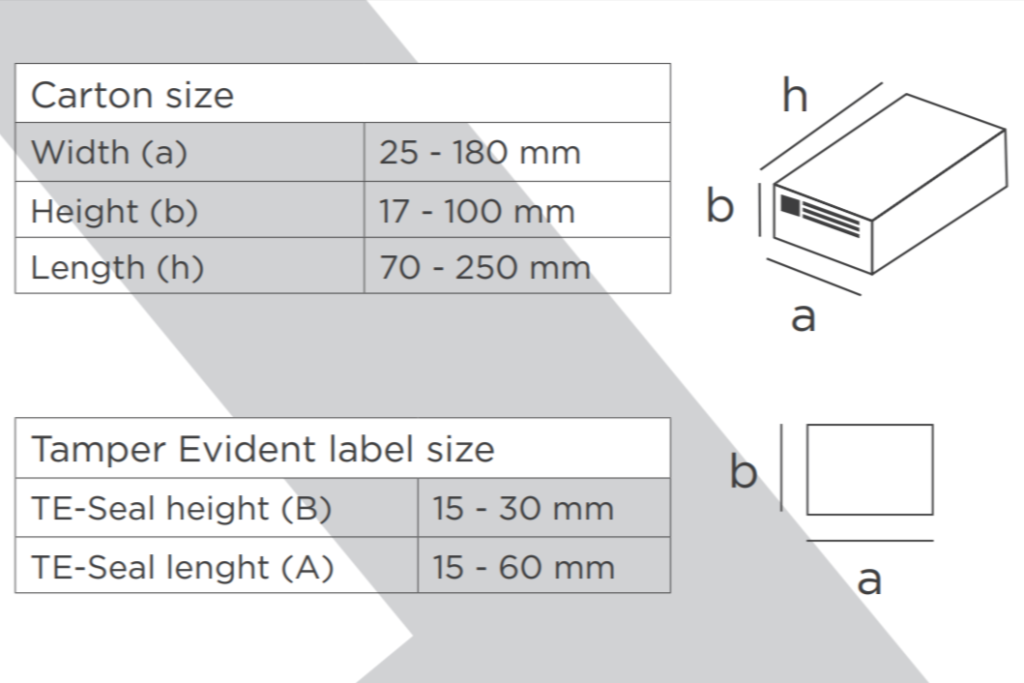

CARTONS FORMAT: [Click on the image]

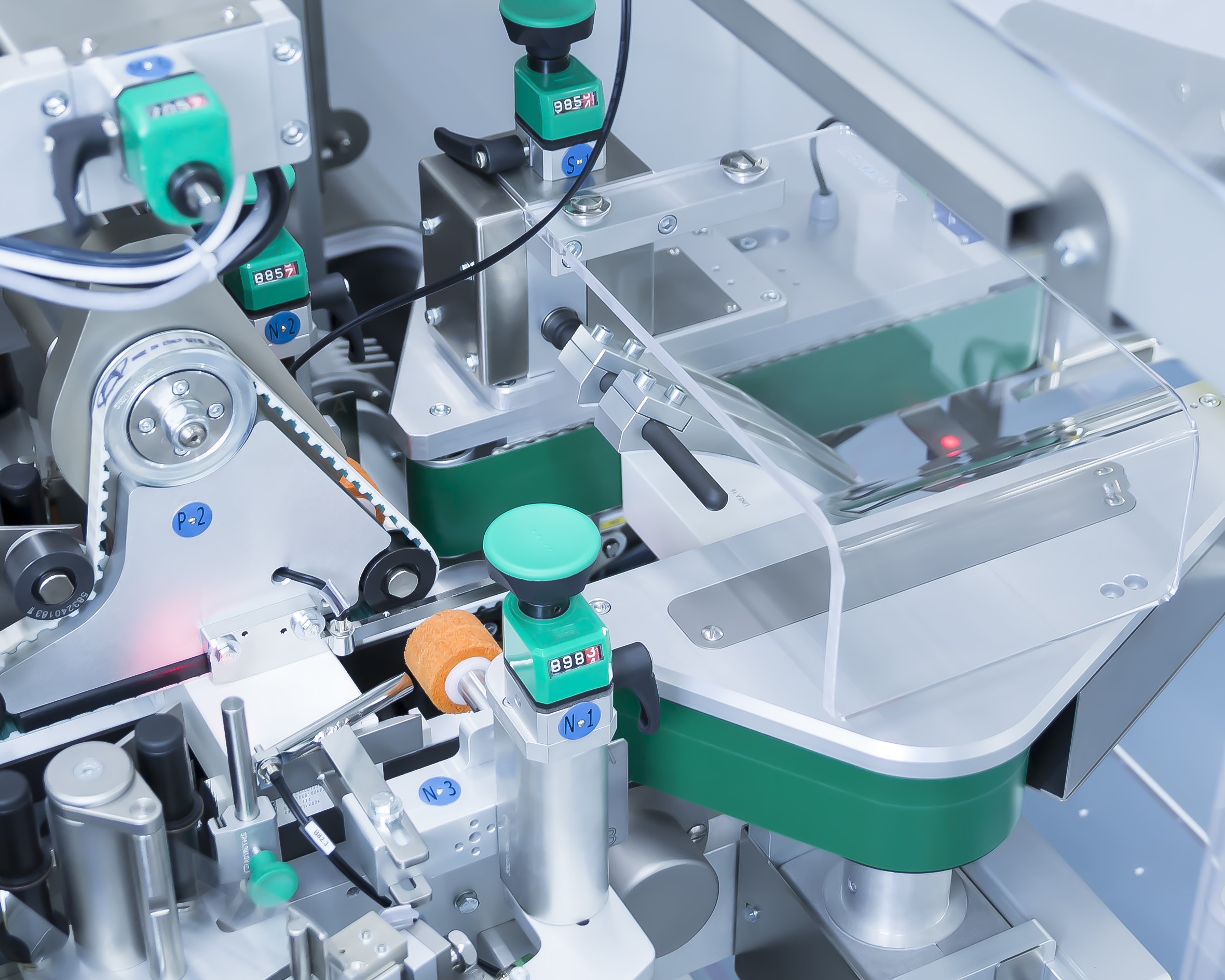

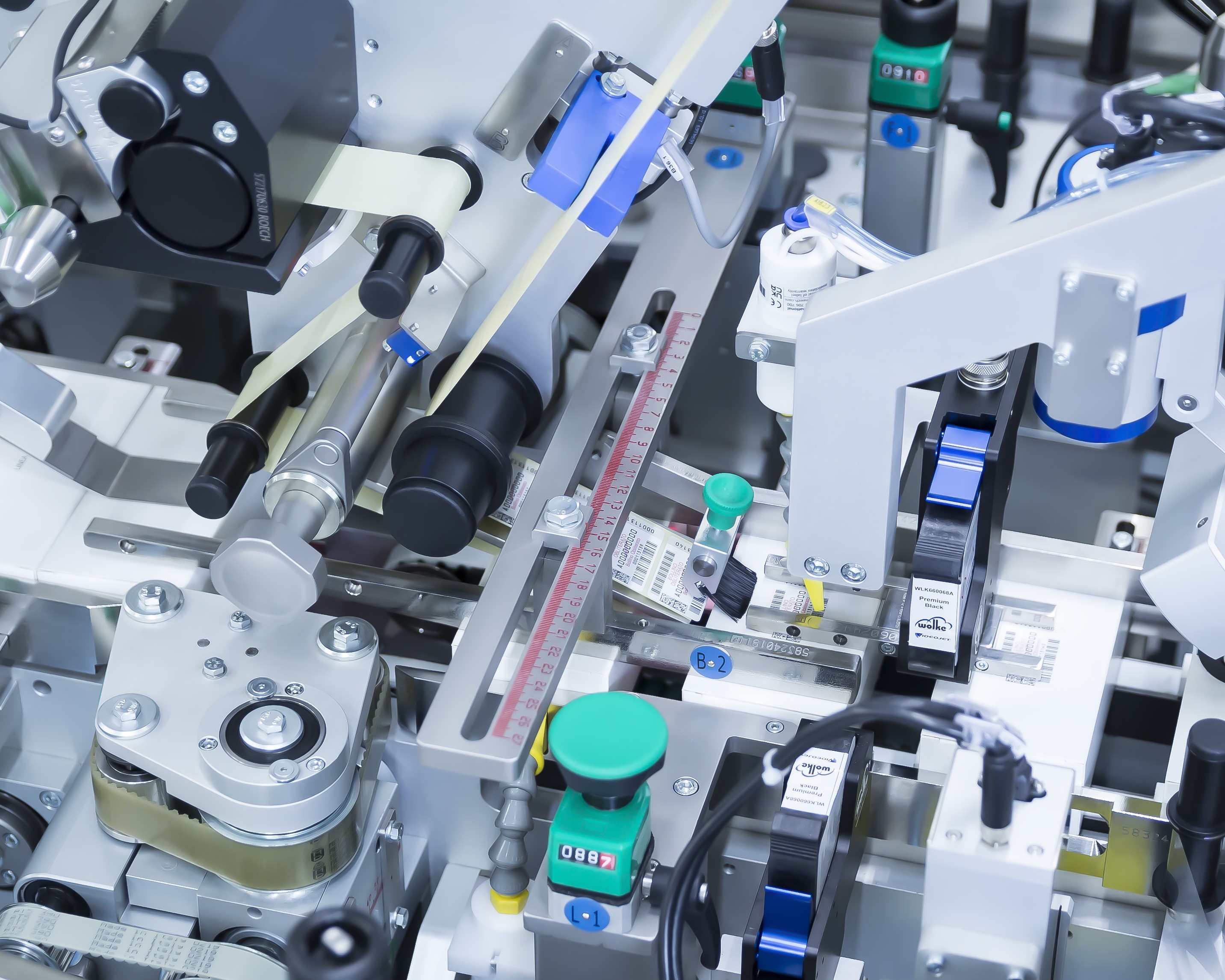

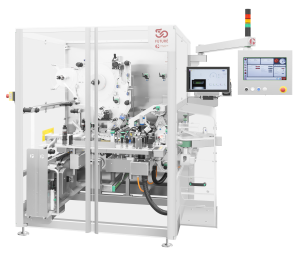

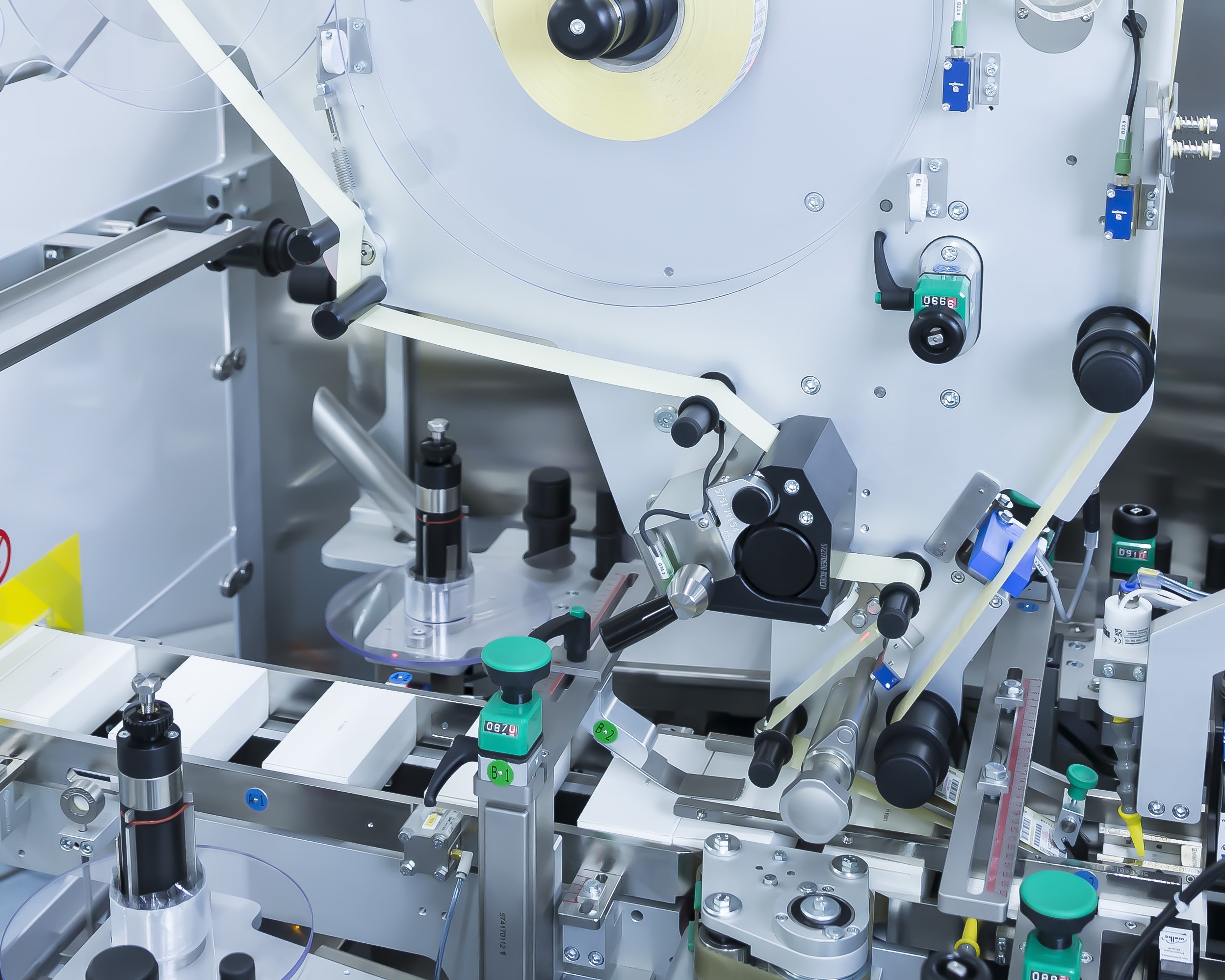

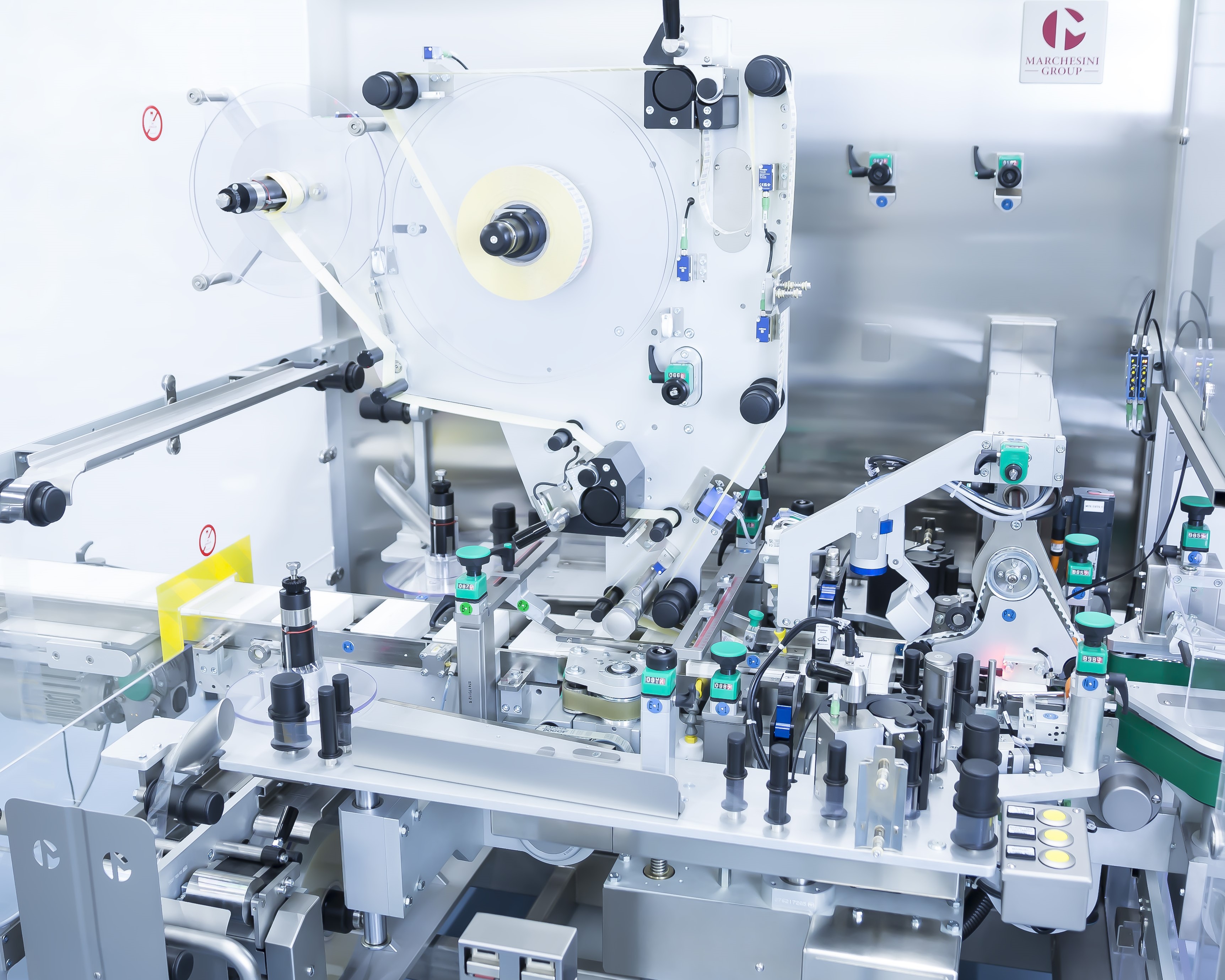

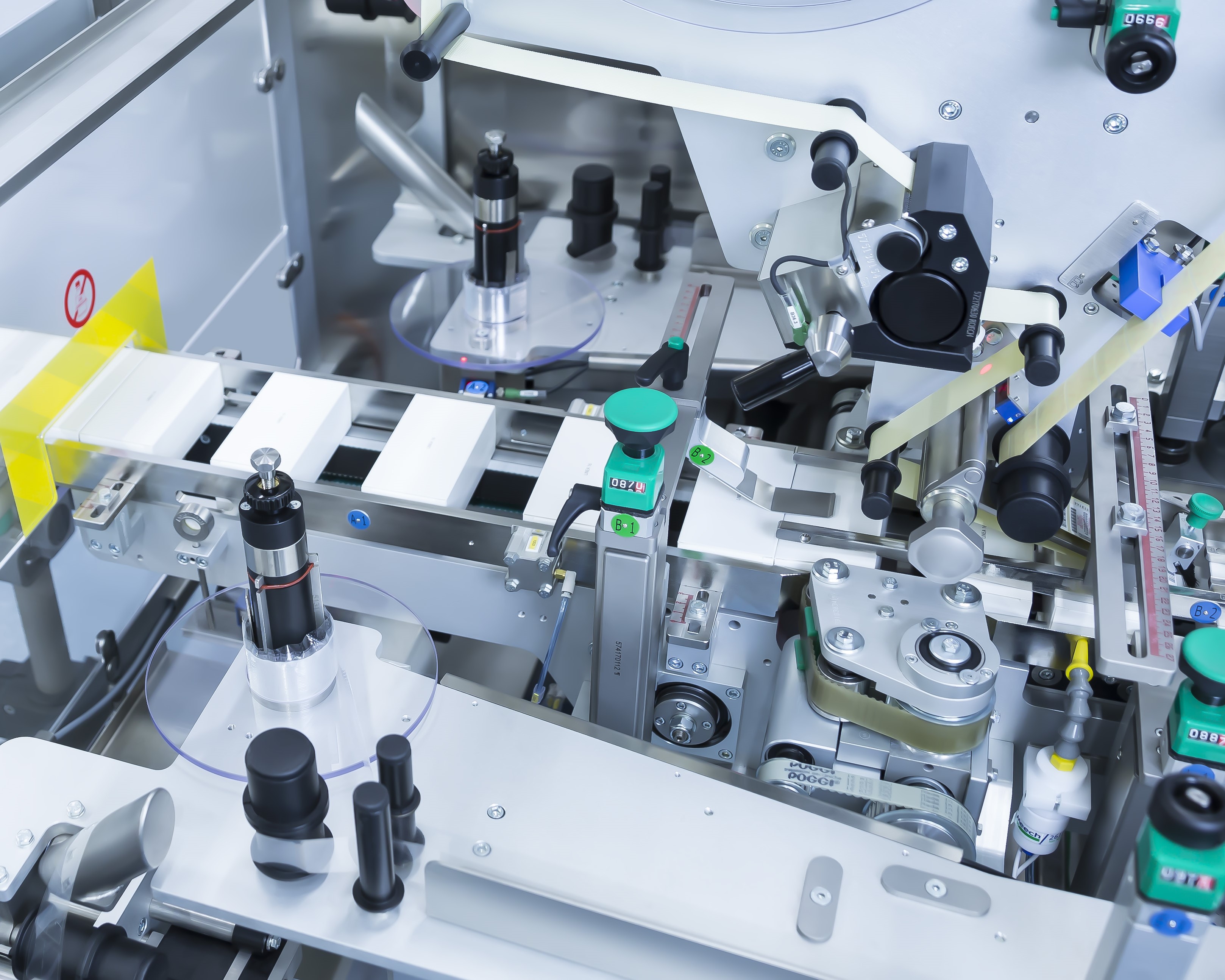

BL-A415S is a continuous motion labeller suitable for 1D, 2D codes and human readable data print and check. The unit operates in line with other machines or as a free-standing machine if equipped with suitable in-feed/out-feed accessories.
BL-A415S integrates Tracker, SEA Vision machine (L1) level serialization solution to manage the printing and check of 1D and 2D serialized codes (e.g. data 2D with cryptocode, code128) making it adapt to every pharmaceutical serialization market. BL-A415S (with TE option) performs the application of tamper evident seals on the lateral flaps of the carton complying with EU Directive 2011/62/EU.
Tracker performs the provisioning of serial numbers from L3 serialization software solution, manages the in-line printing and controls the correctness of the codes and of human readable data on 100% of the production. At the end of the process it executes the posting of the used serial numbers to L3 serialization software solution.
BL-A415S is a continuous motion labeller suitable for 1D, 2D codes and human readable data print and check. The unit operates in line with other machines or as a free-standing machine if equipped with suitable in-feed/out-feed accessories.
- Compact and ergonomic design
- Twin conveyor belts with adjustable width for handling different carton sizes
- Quick changeover without any size parts

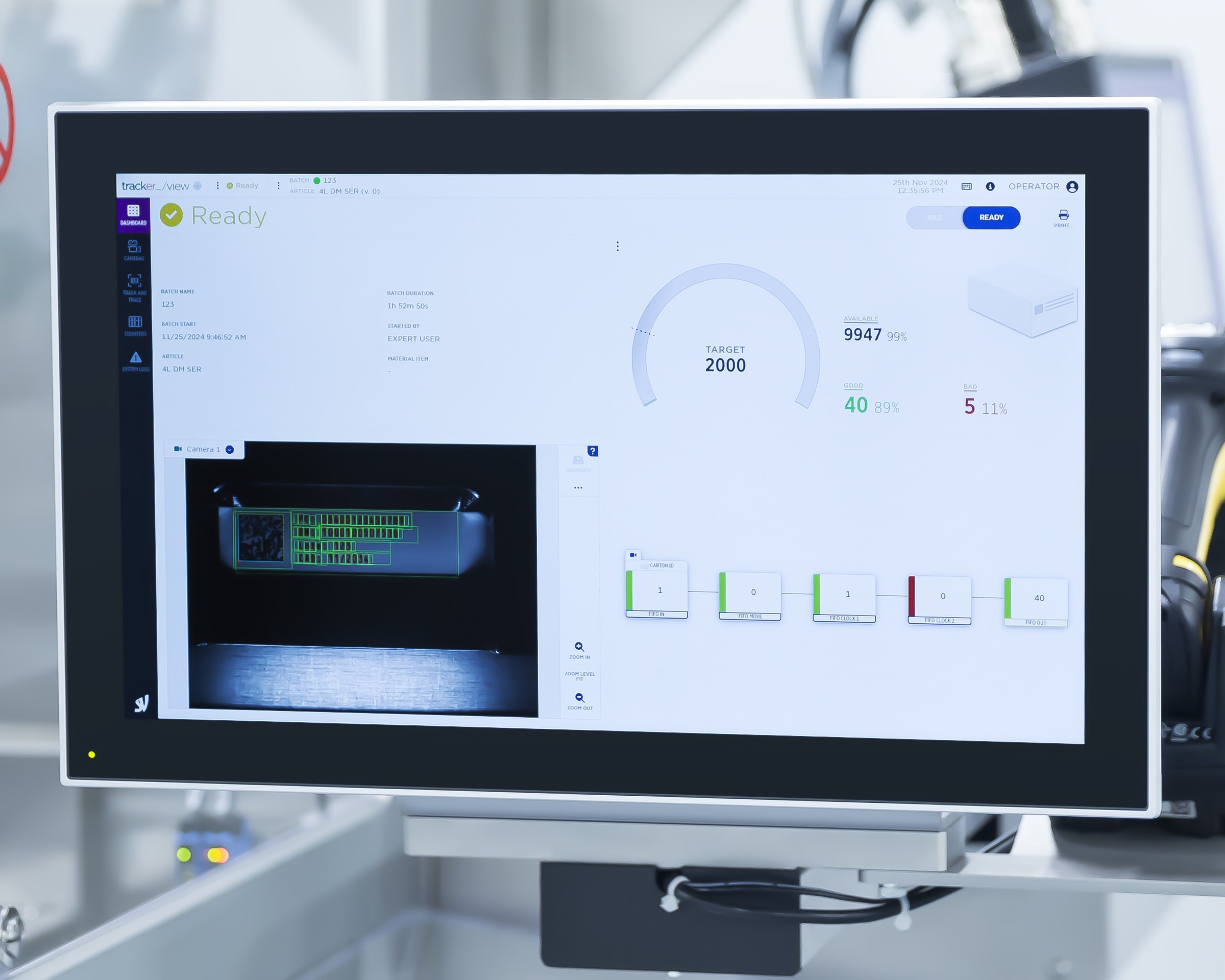

- 15’’ Touch screen control panel for machine and serialization system management, with user-friendly interface (alternatively, integrable in the HMI of the machine)
- High resolution camera with LED light unit
- Multicore and multithread industrial PC with UPS
- Thermal inkjet printer with one or more printing heads
- Safety guards to protect from unauthorized intervention during serialization process
- Fail-safe logic, with rejection by pneumatically driven flap
- Carton reject inside the bin with collection on operator side
OUTPUT: Up to 300 cartons/min
CARTONS FORMAT: [Click on the image]
Tracker is natively integrated with Yudoo, the 4.0 pharmaceutical software suite for the full management of automation processes, digital quality, data analysis and for Track&Trace. A digital hub that is everywhere accessible through a secure-access web interface or dedicated devices.
A scalable and modular suite, including tools for automation (centralized management of production, workflows and timesheet), for the digital quality (creation of paperless systems, support systems for line clearance operations), for data analysis (analysis of production data, business intelligence dashboard, condition monitoring and predictive maintenance) and for Track and Trace (complete solutions for Level 3 and 4 of serialization, monitoring of serialization operations).
Yudoo offers multiple advantages such as the possibility to centralize production formats and data, avoiding duplicates and reducing work time. The suite can connect to existing company systems to retrieve updated data exactly from where they are.
SEA Vision provides an extensive product portfolio of natively integrated solutions. Vision, traceability and data management solutions for pharmaceutical packaging lines are developed with a common approach to obtain a seamless ecosystem.
